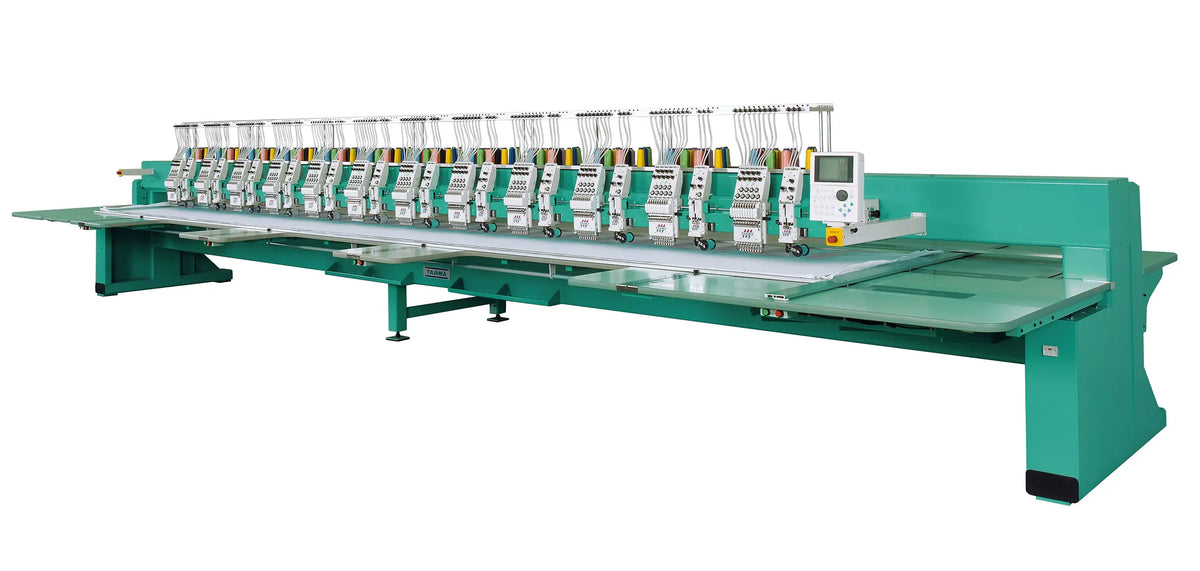

TLMX Series

The TLMX series embroidery machines represent a cutting-edge innovation in the realm of lock-stitch chenille Taping & Coiling embroidery. This series, developed with precision and functionality in mind, offers a diverse range of embroidery variations, making it a standout choice for those seeking high-performance models.

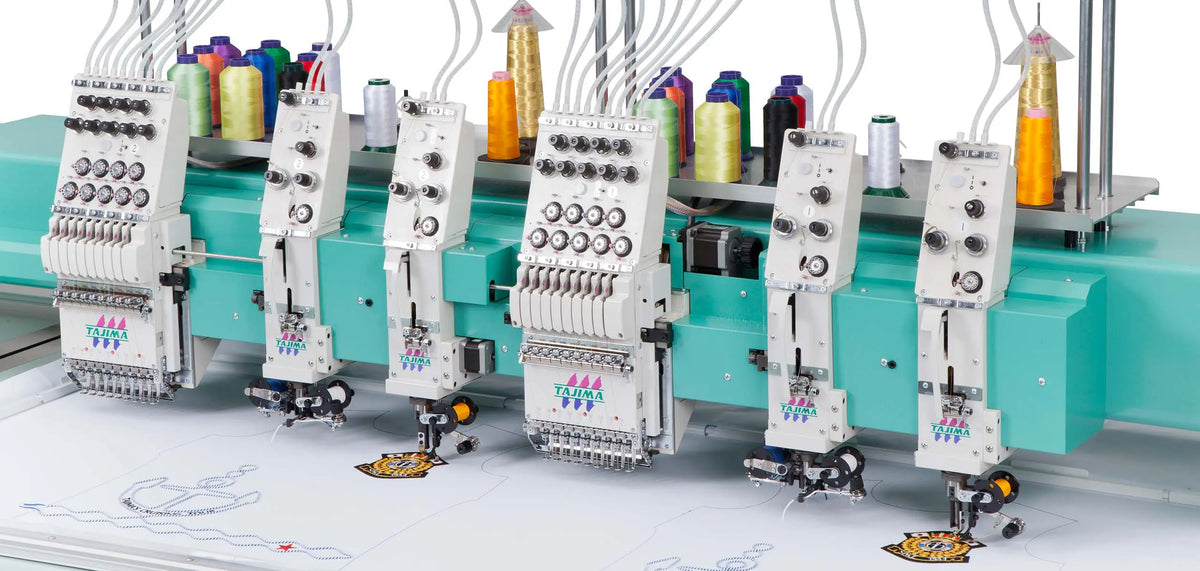

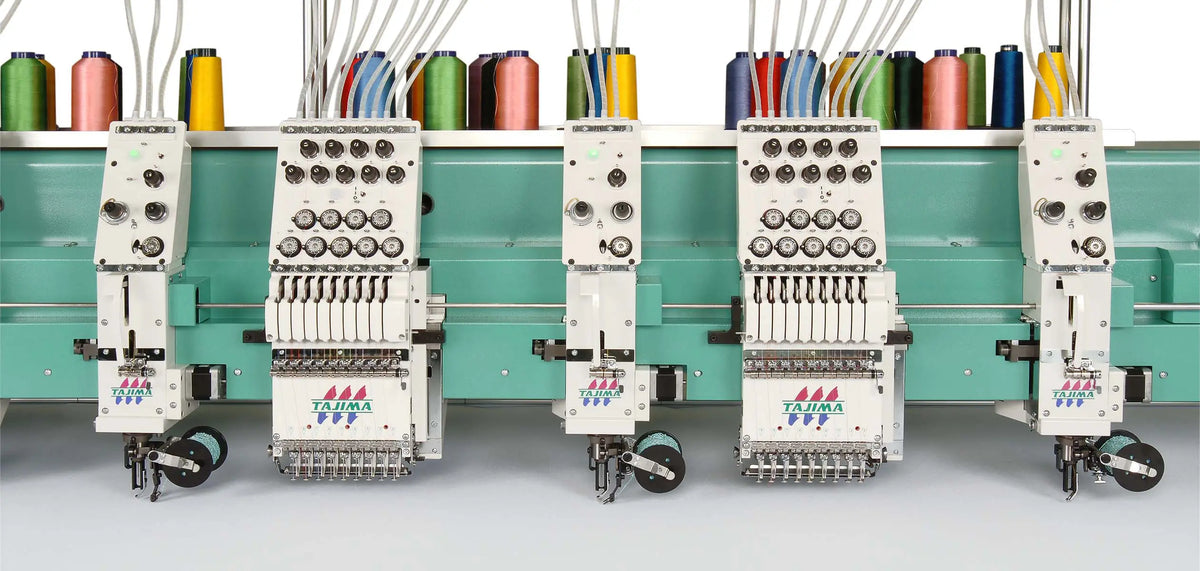

TLMX Mixed Type: The TLMX Mixed Type series is a remarkable integration of lock-stitch chenille embroidery heads and standard embroidery heads, working in pairs. These high-performance models are designed for optimal functionality and operability, providing a seamless embroidery experience.

TLMX100/T00 Series: The TLMX100 Series specializes in lock-stitch chenille embroidery, while the T00 series offers the flexibility of two lock-stitch chenille heads positioned in pairs. Both series ensure top-notch performance and expanded embroidery possibilities.

TLMX Triple Mixed Type: This advanced variation incorporates two lock-stitch chenille embroidery heads alongside a standard embroidery head. With the capability to use up to four different materials, the TLMX Triple Mixed Type series opens up new horizons for embroidery creativity.

Key Features:

• Brilliant Embroidery Arrangements: The machines offer the flexibility to use cord or tape materials, providing endless possibilities for creative embroidery arrangements.

• Wide Stitch Type Variations: Selecting from a wide array of stitch types is made easy through the user-friendly operation panel. The lock-stitch chenille embroidery achieves high quality at a maximum speed of 1,000 rpm.

• State-of-the-Art Technologies: The machines incorporate advanced technologies to ensure stable stitching at high speeds. The lock-stitch chenille heads feature precision M-axis drive for bobbins and sophisticated nipple operation.

• Attachment in Compact Units: Taping, coiling, zigzag swing stitch embroidery attachments are supplied in compact units, facilitating easy replacement and contributing to increased working efficiency.

• High-Speed Operation: With a maximum speed of 1,000 rpm for taping or zigzag swing stitch embroidery, the machines significantly enhance productivity.

• M-Axis Free Control System: The M-axis free control system allows adjustment head by head, providing flexibility for bobbin movement as necessary.

• Thread Breakage Detector and Middle Thread Guide: The machines are equipped with a thread breakage detector and middle thread guide with a take-up spring, ensuring stable stitching and reliable performance.

• W-Bobbin Attachment: The W-bobbin attachment enables the use of two bobbins on a lock-stitch chenille head, allowing for versatile embroidery stitches without the need for frequent bobbin replacements.

• Automatic Nipple Lifting Function: An automatic nipple lifting function improves working efficiency by lifting needles and nipples to their retracting positions after embroidery completion.

• Zigzag Swing Assist: The zigzag swing assist feature allows adjustable swing intervals for zigzag swing stitches, accommodating various materials securely.

User-Friendly Operation Features:

• Color LCD Operation Panel: The machines feature a user-friendly color LCD operation panel with special-use keys, providing real-time display of the ongoing embroidery process.

• Automatic Frame Changer (AFC): An optional automatic frame changer allows continuous embroidery of fabric in rolls, enhancing efficiency with a fabric clamping device and other advanced mechanisms.

• Sequin Devices and High-Speed Cording Device: The TLMX series offers options such as sequin devices and high-speed cording devices, expanding design possibilities and providing efficient embroidery solutions.
