TCMX Series
TCMX Series

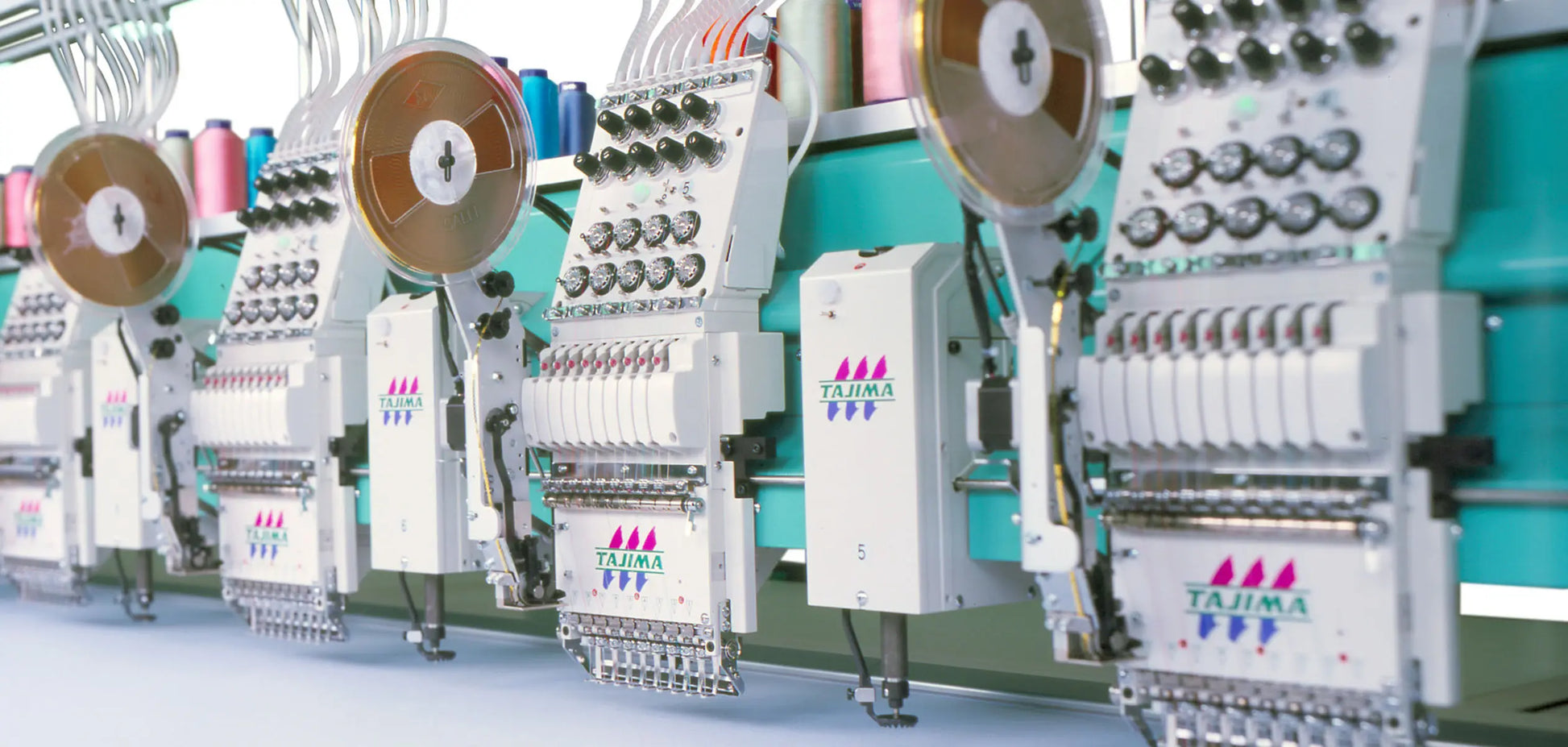

The TCMX Series embroidery machines, developed by Tajima, represent a pinnacle in the integration of advanced technology and the rich embroidery expertise of the company. These machines, available in various configurations, showcase Tajima's commitment to delivering high-value products with cutting-edge features.

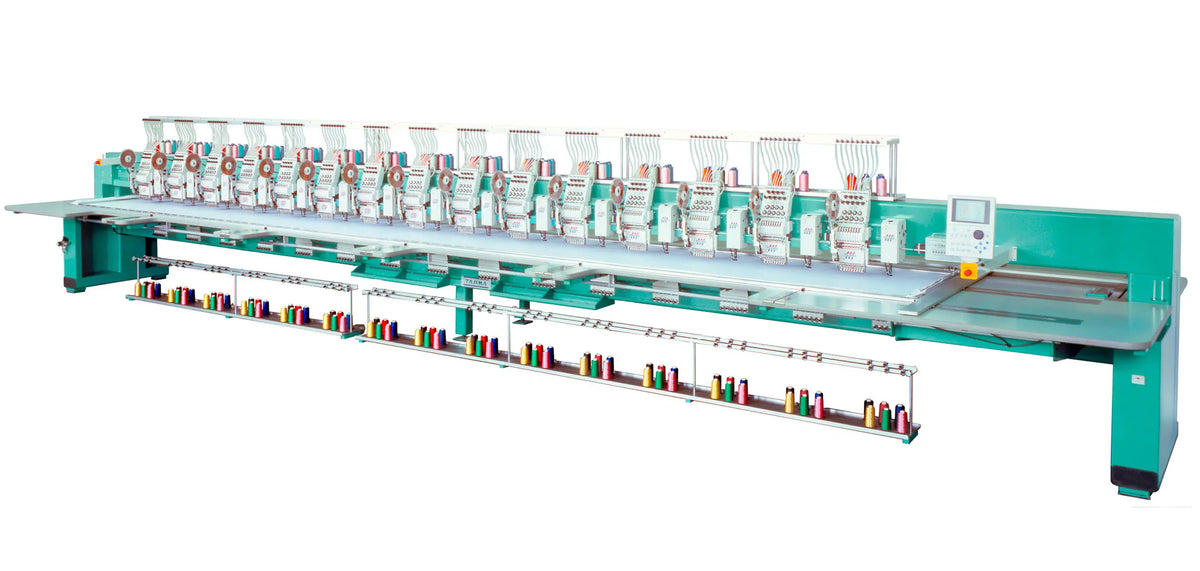

TCMX Mixed Type: This series combines the efficiency of chenille embroidery with standard embroidery in a single machine. Pairs of chenille and standard embroidery heads, available up to 15 pairs, facilitate versatile embroidery expressions, enhancing production efficiency.

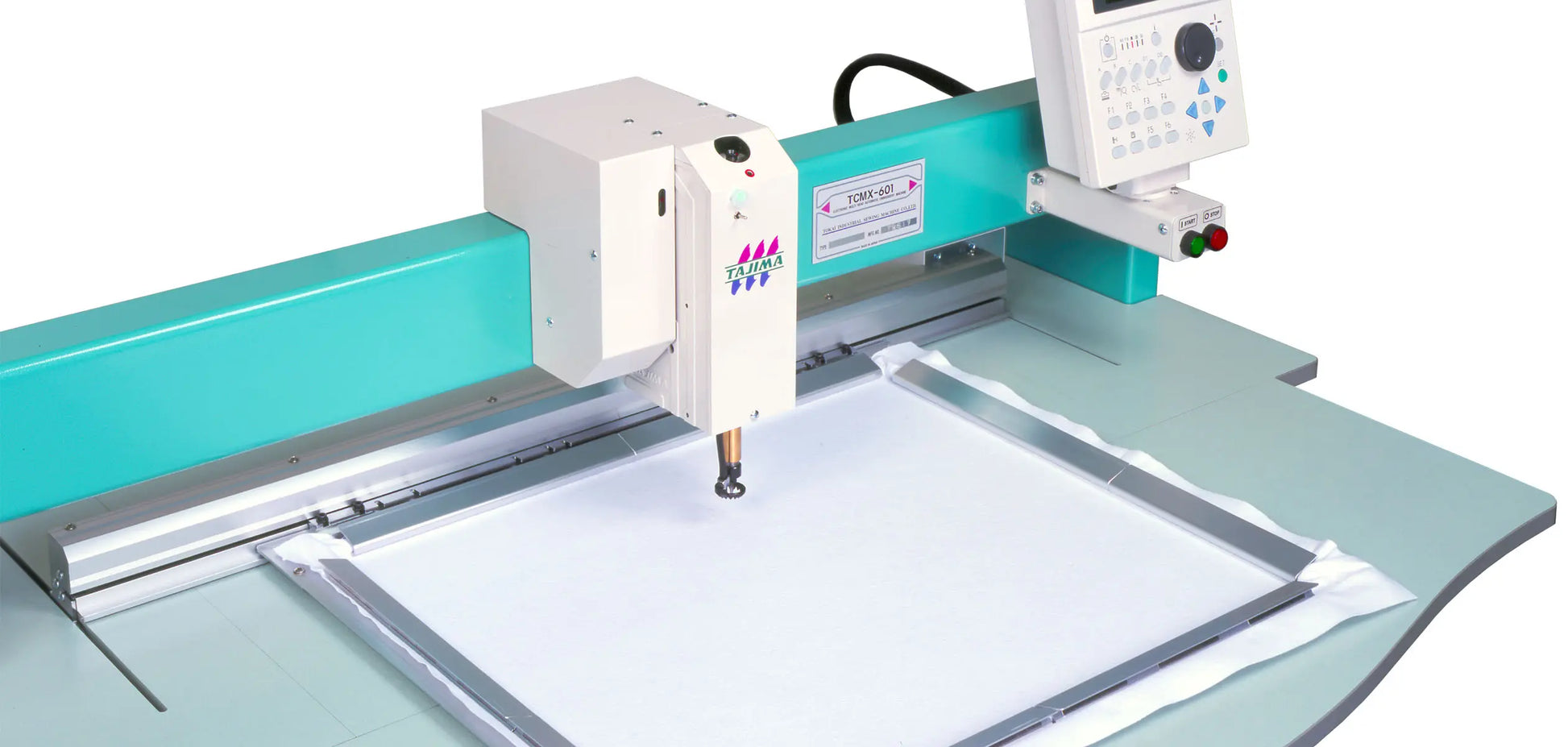

TCMX 600 Type: Specialized for chenille embroidery, the TCMX 600 series pursues high speed, quiet operation, and productivity. With stable stitching at an industry-leading speed of 750rpm (up to 23 heads), these multi-head machines are designed to meet demanding production requirements.
Key Features of TCMX Series:
- High-speed Operation: Achieving an impressive 750 rpm, a significant improvement from the previous 600 rpm, the TCMX series ensures enhanced productivity.
- Automatic Color Change: A seamless color-changing mechanism allows for the automatic switching of up to 6 colors, providing versatile multicolor arrangements.
- Automatic Lift-Up Mechanism: Simplifying frame exchange operations, the Needle, Nipple, and Presser foot are automatically lifted up.
- Automatic Needle Height Adjustment: The needle height can be adjusted in 10 steps, accommodating various loop heights or chain sizes.
- Tie-off Function: To prevent thread fraying and production errors, chain stitches are automatically inserted after loop stitches.
Standard Embroidery Head Features:
- Ball Screw Drive System: Adopting precision ball screw drive reduces the time required for color change operations, improving productivity.
- Thread Tension Stability: A middle thread guide with thread take-up spring maintains the balance of upper and lower threads, reducing thread breakage by 30-50%.
- Thread Breakage Detector: Monitors thread movement, instantly detecting and stopping stitching in case of thread breakage to prevent production errors.
- Safety Measures: Spiral tubes and take-up lever guards enhance safety during high-speed operation.
Technological Advancements:
- User-Friendly Operation Panel: Featuring a color LCD panel and special keys, the intuitive interface allows real-time monitoring of the ongoing embroidery job.
- Energy-Saving Sleep Mode: The machine incorporates a sleep mode function to save energy, reducing unnecessary power consumption.
- Data Input/Output: USB memory support enables easy design data input/output, and the "Condition Memory" function allows the recall of stitching conditions.
- LAN Support: The inclusion of a LAN port facilitates networking using DG/ML by PULSE.
